UPS-10ZT(A)Deisel Engine Shotcrete Machine
1. Performance
1. It adopts a sliding chassis design, wireless remote control wet spraying operation and walking system; it is suitable for small-section mine tunnels and various harsh construction environments.
2. The fully hydraulic telescopic and rotating mechanical arm has strong load-bearing capacity, stable movement, easy operation and no construction blind spots.
3. The spray arm is located at the front of the unit and do not interfere with other arms, it maximizing the flexibility of the robotic booms. Moreover, the rotation angle of the main arm can reach 360 degrees and the spraying is even and without dead spots.
4. Its small size allows it be driven flexibly and operated in mines of different sizes; It has a high integration and is equipped with an accelerator pump.
5. Each wet spraying machine only needs one shotcrete operator and one assistant, which greatly reduces labor costs.
6. The pumping system has strong suction of concrete which ensures longer service life and low risk of pipe blockage.

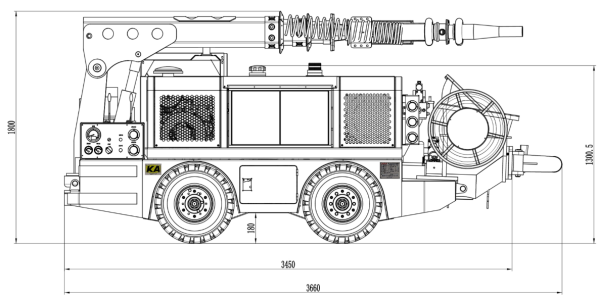

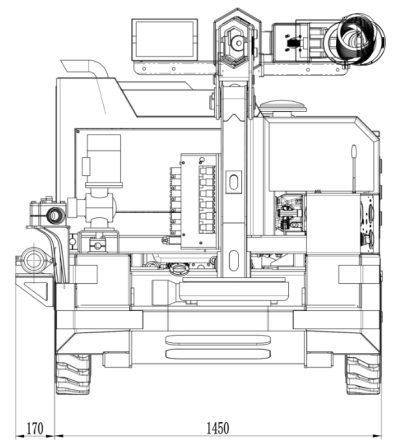

2. Dimension
3.Technical parameters
| Specifications |
| Total Weight(kg) | 4200 kg |
| Dimension(L×W×H,mm) | 3450×1450×1800mm(±50) |
| Actual concrete spraying capacity | 10 m3/h |
| Power mode (dual power) | Driving: Diesel engine (retractable boom) Working: External 380V AC |
| Total power (engine/motor, kw) | Engine:36.8 kW Motor:18.5kW |
| Maximum concrete spraying pressure (MPa) | 5 MPa |
| Driving System Parameters |
| Driving and steering | Four-wheel drive, skid steering |
| Brake system | Driving: closed spring brake, Parking: hydraulic release |
| Gradeability | 22° |
| Turning radius | 4200 mm |
| Driving speed | 4.5km/h |
| Min. Ground Clearance | ≥180 mm |
| Boom system of concrete spraying machine |
| Structure | Main arm rotation, spray arm pitch + telescopic |

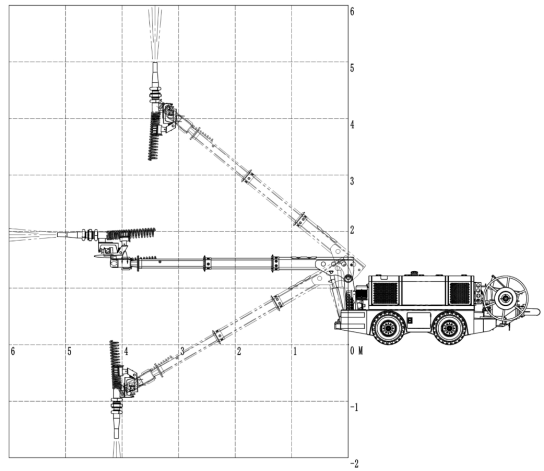

| Maximum effective spray range | Upward | 5m |
| Forward | 6m |
| Downward | 2m |
| Width | 12m |
| Boom rotation angle | 360° |
| Boom pitch range | (Upward 39.4° / Downward 30° ) |
| Axial rotation range of nozzle seat | 270° |
| Axial swaying range of nozzle seat | 240° |
| Nozzle swaying angle+movement | 8°*360°Rotation |
| Conveying pipeline(mm) | Steel pipe:75 Hose:63 |
| Conveying pipeline cleaning | Water+Air Washing |
